Our exciting and refreshing design concepts enhance looks and safety, whilst reducing product damage and wastage, resulting in real cost savings to our clients in various finishes and materials. A range of standard stairtreads are available ex stock in various finishes to reduces costs and access time.

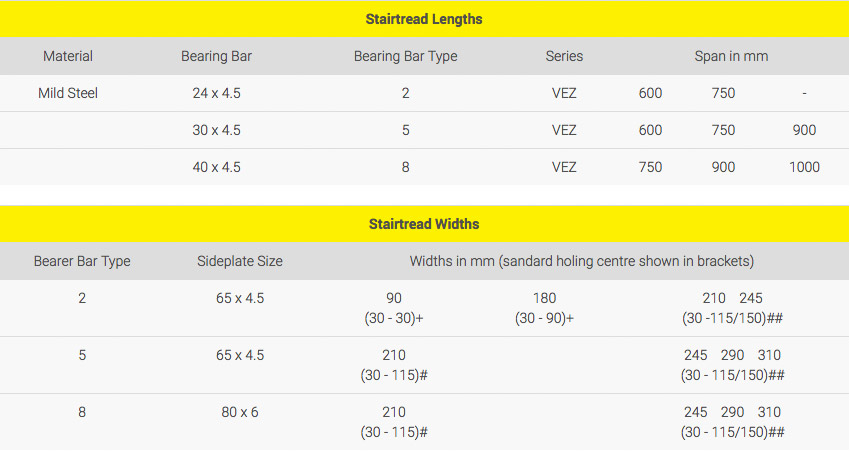

In order to offer our clients a complete system, we have tabulated our standard range of stairtreads in the VEZ series with the bearing members shown. For economical reasons we suggest these sizes be adhered to.

---

---

+ = two 14mm diameter circular holes
# = one 14mm diameter hole and one 40mm slotted hole
## = one 14mm diameter hole and one 65mm slotted hole
Although numerous other types are manufactured, we suggest for economy purposes that the above standards be used.

---

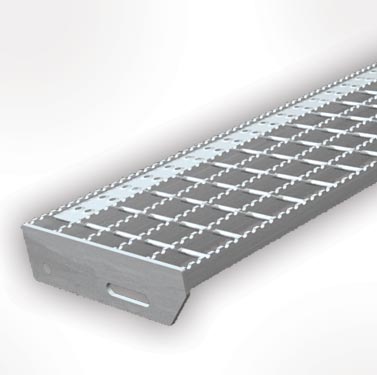

Econotread Specification Table Stairtreads

When specifying to ensure you get the product you want please use the following as an example: Quantity required – Econotread – specification required – finish or material grade.
eg: 50 off Econotread 900-40-25-250 galvanised for 250mm long treads or 900-40-25-300 for 300mm long treads.

*ℓ = 250 or 300 eg: 1000-40-25-250

Note: Test results are based on mild steel. This should improve if stainless steel or 3CR12 is used due to the chemical make up of these materials.

---

Vitagrid^® Stairtreads
